Description

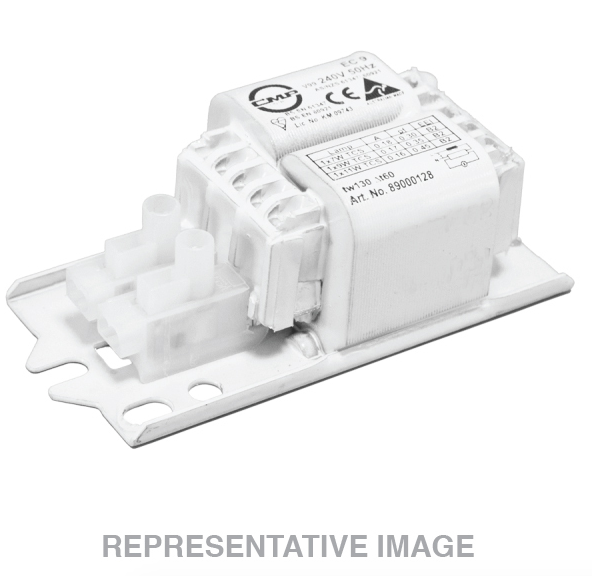

EC 18 OD300K 220/50 040A150 LN ATC
| Lamp | Ballast | Electrical | Thermal | Physical | |||||||||||||||
| Wattage | Voltage | Current | Length | Type | Article Number | Loss Hot | Input Power | Lamp Current | Lamp Start Current | Circuit | Line Current | Line Start Current | Capacitor | Normal/Abnormal | Stack | Figure | Length | Mtg Centres | Weight |
| W | V | mA | mm | W | W | mA | mA | cos ø | mA@0.9PF | mA@0.9PF | μF0.9PF | Δt | mm | mm | mm | kg | |||
| 220 V 50 Hz – EC lean ballasts | |||||||||||||||||||
| Linear Lamps | |||||||||||||||||||
| 18 | 57 | 370 | 600 | EC 18 OD100K | 89003620 | 9.1 | 26.7 | 345 | 435 | 0.36 | 130 | 170 | 4 | 55/90 | 40 | 1 | 150 | 135.5 | 0.45 |
