Description

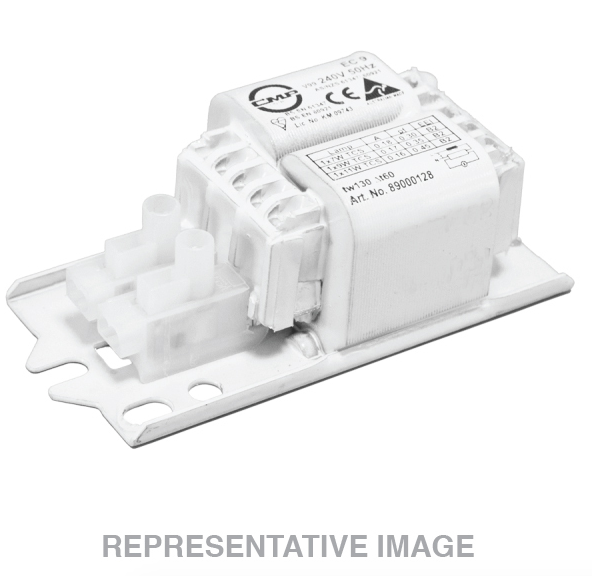

EC 9 -07 230V 50HZ TRAT B2
Lamp | Ballast | Electrical | Thermal | Physical | |||||||||||||||
Wattage | Voltage | Current | Length | Type | Article Number | Loss Hot | Input Power | Lamp Current | Lamp Start Current | Circuit | Line Current | Line Start Current | Capacitor | Normal/Abnormal | Stack | Figure | Length | Mtg Centres | Weight |
W | V | mA | mm | W | W | mA | mA | cos ø | mA@0.9PF | mA@0.9PF | μF0.9PF | Δt | mm | mm | mm | kg | |||
230 V 50 Hz – EC low loss ballasts (EEI=B2) | |||||||||||||||||||
Compact Lamps | |||||||||||||||||||
5 | 35 | 180 | TC-S | EC9 | 89000133 | 5.1 | 10.5 | 175 | 190 | 0.26 | 51 | 58 | 2 | 55/75 | 27 | 2 | 84.5 | 76 | 0.33 |
7 | 47 | 175 | TC-S | EC9 | 89000133 | EEI=B2 | 12.1 | 170 | 190 | 0.31 | 58 | 69 | 2 | 55/75 | 27 | 2 | 84.5 | 76 | 0.33 |
9 | 60 | 170 | TC-S | EC9 | 89000133 | EEI=B2 | 13.6 | 165 | 190 | 0.36 | 65 | 79 | 2 | 55/75 | 27 | 2 | 84.5 | 76 | 0.33 |
11 | 91 | 155 | TC-S | EC9 | 89000133 | EEI=B2 | 16.2 | 150 | 190 | 0.47 | 78 | 104 | 1.5 | 55/75 | 27 | 2 | 84.5 | 76 | 0.33 |
230 V 50 Hz – EC energy control ballasts | |||||||||||||||||||
Compact Lamps | |||||||||||||||||||
5 | 35 | 180 | TC-S | EC9 | 89000133 | 5.1 | 10.5 | 175 | 190 | 0.26 | 51 | 58 | 2 | 55/75 | 27 | 2 | 84.5 | 76 | 0.33 |
7 | 47 | 175 | TC-S | EC9 | 89000133 | EEI=B2 | 12.1 | 170 | 190 | 0.31 | 58 | 69 | 2 | 55/75 | 27 | 2 | 84.5 | 76 | 0.33 |
9 | 60 | 170 | TC-S | EC9 | 89000133 | EEI=B2 | 13.6 | 165 | 190 | 0.36 | 65 | 79 | 2 | 55/75 | 27 | 2 | 84.5 | 76 | 0.33 |
11 | 91 | 155 | TC-S | EC9 | 89000133 | EEI=B2 | 16.2 | 150 | 190 | 0.47 | 78 | 104 | 1.5 | 55/75 | 27 | 2 | 84.5 | 76 | 0.33 |
