Description

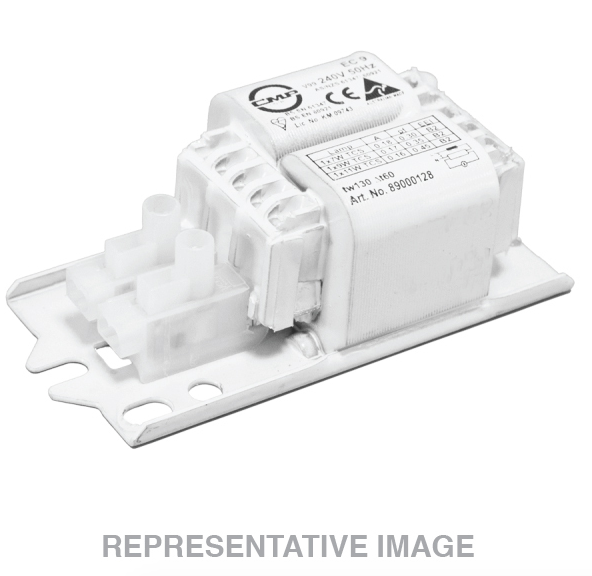

EC 9 240V 50HZ TRAT B2
Lamp | Ballast | Electrical | Thermal | Physical | |||||||||||||||
Wattage | Voltage | Current | Length | Type | Article Number | Loss Hot | Input Power | Lamp Current | Lamp Start Current | Circuit | Line Current | Line Start Current | Capacitor | Normal/Abnormal | Stack | Figure | Length | Mtg Centres | Weight |
W | V | mA | mm | W | W | mA | mA | cos ø | mA@0.9PF | mA@0.9PF | μF0.9PF | Δt | mm | mm | mm | kg | |||
240 V 50 Hz – EC low loss ballasts (EEI=B2) | |||||||||||||||||||
Compact Lamps | |||||||||||||||||||
5 | 35 | 180 | TC-S | EC9 | 89000128 | 5.7 | 11.1 | 180 | 187 | 0.26 | 51 | 56 | 2 | 60/75 | 27 | 2 | 84.5 | 76 | 0.33 |
7 | 47 | 175 | TC-S | EC9 | 89000128 | EEI=B2 | 12.6 | 175 | 187 | 0.3 | 58 | 65 | 2 | 60/75 | 27 | 2 | 84.5 | 76 | 0.33 |
9 | 60 | 170 | TC-S | EC9 | 89000128 | EEI=B2 | 13.9 | 165 | 187 | 0.35 | 64 | 77 | 2 | 60/75 | 27 | 2 | 84.5 | 76 | 0.33 |
11 | 91 | 155 | TC-S | EC9 | 89000128 | EEI=B2 | 16.7 | 155 | 187 | 0.45 | 77 | 98 | 1.5 | 60/75 | 27 | 2 | 84.5 | 76 | 0.33 |
240 V 50 Hz – EC energy control ballasts | |||||||||||||||||||
Compact Lamps | |||||||||||||||||||
5 | 35 | 180 | TC-S | EC9 | 89000128 | 5.7 | 11.1 | 180 | 187 | 0.26 | 51 | 56 | 2 | 60/75 | 27 | 2 | 84.5 | 76 | 0.33 |
7 | 47 | 175 | TC-S | EC9 | 89000128 | EEI=B2 | 12.6 | 175 | 187 | 0.3 | 58 | 65 | 2 | 60/75 | 27 | 2 | 84.5 | 76 | 0.33 |
9 | 60 | 170 | TC-S | EC9 | 89000128 | EEI=B2 | 13.9 | 165 | 187 | 0.35 | 64 | 77 | 2 | 60/75 | 27 | 2 | 84.5 | 76 | 0.33 |
11 | 91 | 155 | TC-S | EC9 | 89000128 | EEI=B2 | 16.7 | 155 | 187 | 0.45 | 77 | 98 | 1.5 | 60/75 | 27 | 2 | 84.5 | 76 | 0.33 |
