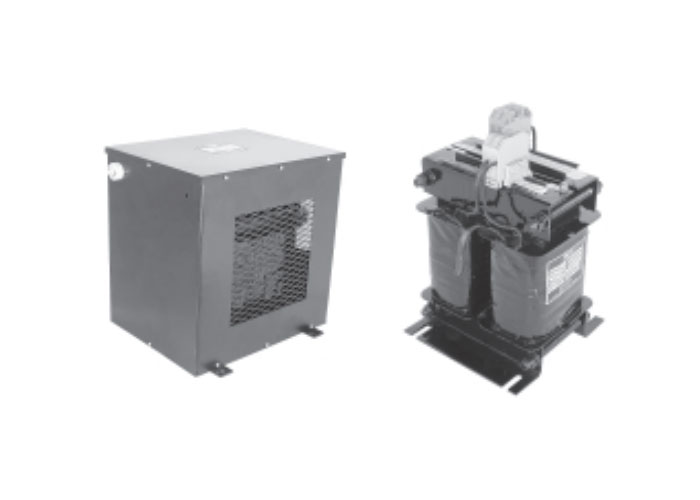

Single phase open and enclosed 8.0KVA to 200KVA 50/60Hz

Product Details

  • Class “H” insulation system.
  • Terminal type depends on current rating of the transformer:
    – DIN rail mounting terminal block.
    – DIN rail mounting stud terminals.
    – Crimp terminal lugs.
  • Case 28S and 25S φ25 mm, 2 x bushes for cable entry (opposite ends).
  • Case 9S φ44 mm, 2 x bushes for cable entry (opposite ends).
  • Case 10S, 2 x aluminium gland plates for cable entry (opposite ends).
  • Case 11S, 2 x aluminium gland plates for cable entry (bottom).
  • Weight, Core loss, Copper loss are approximate values only.
  • Powder coated Case in Black Finish

* Products can be manufactured to UL recognized Insulation system

Manufacturing Details

Manufactured to AS/NZS61558 & AS60076.11

100% final testing

  • High potential test
  • Voltage ratio test
  • Resistance test
  • Short-circuit test

Product Specifications

KVA Open Type Enclosed Type Typical Core Loss (Watts) Typical Copper Loss @ 115°C (Watts)
A A’ B C Mounting (D x W x ɸ) Weight (kg) Diagram No. Mounting (D x W x ɸ) Weight (kg)
200 400 445 540 920 395x280xφ13 540 11S 840x560xφ13 580 560 3330
167 360 445 540 920 395x280xφ13 460 11S 840x560xφ13 500 490 3210
133 330 445 540 920 395x280xφ13 390 11S 840x560xφ13 430 400 2960
100 310 445 540 920 395x280xφ13 340 11S 840x560xφ13 380 360 2240
93 390 430 390 690 380x205xφ13 300 10S 575x500xφ13 330 330 2230
83 360 405 390 690 355x205xφ13 280 10S 575x500xφ13 310 300 1970
67 310 360 390 690 310x205xφ13 230 10S 575x500xφ13 260 240 1820
50 265 315 390 690 265x205xφ13 190 10S 575x500xφ13 220 180 1650
40 235 290 390 690 240x205xφ13 160 10S 575x500xφ13 190 150 1520
33 405 490 270 500 450x160xφ9 190 9S 565x300xφ13 210 480 490
27 340 425 270 500 385x160xφ9 160 9S 565x300xφ13 180 380 440
20 280 425 270 500 325x160xφ9 120 9S 565x300xφ13 140 290 380
17 250 340 270 500 325x160xφ9 110 9S 565x300xφ13 130 240 350
13 215 310 270 500 260x160xφ9 90 9S 565x300xφ13 110 190 320
10 185 310 270 500 260x160xφ9 80 9S 565x300xφ13 100 150 270
8 310 425 220 340 355x130xφ9 80 28S 315x245xφ10 90 220 140
